アンテナ特性可視化システム
NEW
メーカー
Y.I.C. Technologies ※旧EMSCAN
型番
RFScanner
分野・用途
3D アンテナパターン測定

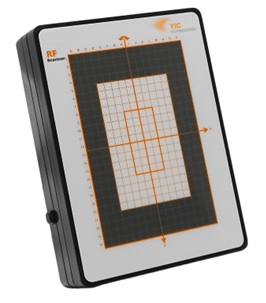

RFScannerは、アンテナパターンや特性等、卓上で高速に測定する事が可能です。
用途・特徴

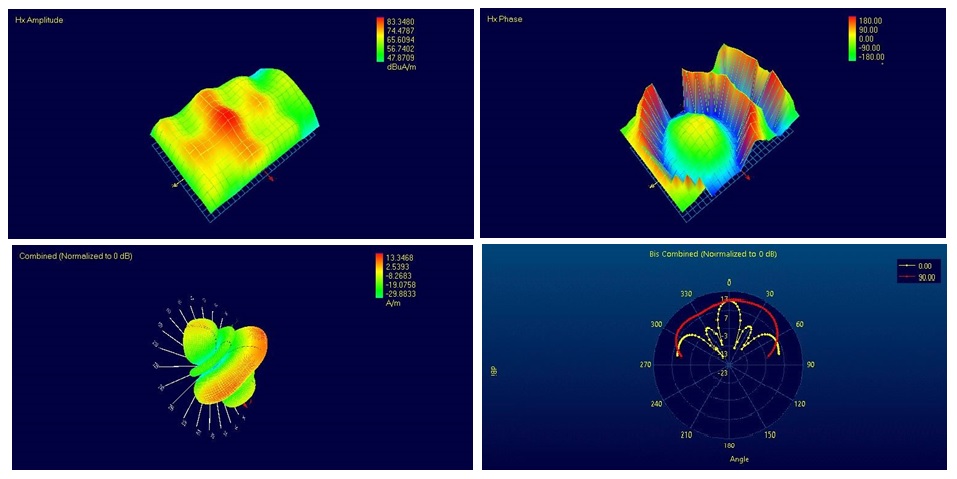

RFScannerは、アンテナの試作など簡単にアンテナ性能をリアルタイムで評価出来るコンパクトベンチトップスキャナです。近傍磁界の振幅と位相を測定する事で、遠距離場パターン、EIRP および TRP、その他のパラメータを数秒で測定可能です。リアルタイムで遠方界放射パターン評価が可能なため、製品化後のトラブルシューティングにも有用です。
仕様
※スクロールでご覧いただけます。
| Broadband frequency coverage | 300 MHz to 6 GHz | |||
| Measurement sensitivity | 0 dBm source power for a reasonably efficient antenna | |||
| Measurement accuracy | Typically +/- 1.5 dB* (700 MHz - 6 GHz) | |||
| Measurement repeatability | +/- 0.2 dB | |||
| Far-field resolution | 1.8° for theta and 3.6° for phi | |||
| Maximum radiator size | L 16 cm x W 10 cm (L 6.30” x W 3.94”) | |||
| Resolution Bandwidth | Resolution Bandwidth = IF Bandwidth of 60MHz | |||
| Probe to probe uniformity | Calibrated before shipment Firmware correction factors adjust for frequency dependent probe responses with < +/- 0.5 dB accuracy |
|||
| Probe to probe isolation | > 20 dB | |||
| Maximum radiated power | > +33 dBm | |||
| Operating temperature | From 15 ?C to 40 ?C (continuous fixed frequency scan at 2440 MHz) | |||
| Modulation formats | GSM / CDMA / WCDMA / Wi-Fi / WiMAX / LTE Bluetooth RFID GPS Custom antenna | |||
| Scanner connections | PC: USB Power: 6 VDC, 3.0 A |
|||
| Dimensions | L 32.1 cm x W 24 cm x H 7 cm (L 12.64” x W 9.45” x H 2.76”) | |||
| Weight | 3.8 kg / 8.38 lb. (including cables and adaptor) | |||

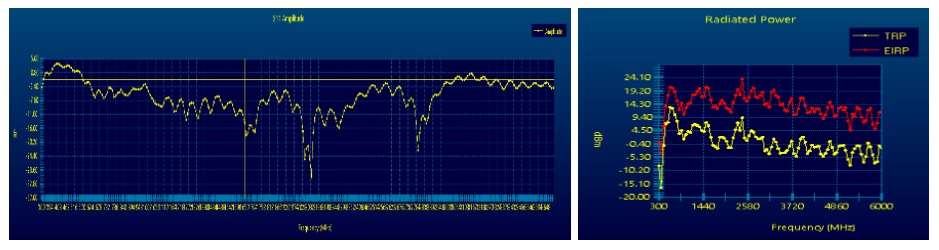

| Capability | 2D and 3D near-field patterns (amplitude, phase and polarization) Far-field patterns and bi-sections (cartesian and polar) EIRP and TRP Graph S11 Calculate gain and efficiency Circular Polarization: Right (RHCP) and left hand circularly polarized patterns (LHCP) and Axial Ratio (AR) |
|||
| Scan time | Seconds | |||
| Supported network analyzers | Most of the common Keysight & R&S VNAs. Please contact Y.I.C. Technologies for more information |
|||
| Supported operating systems | Windows 10® | |||
| warranty | One year, optional 3-years warranty and 5-years warranty | |||
